Enerpac

P3 Hand Pumps

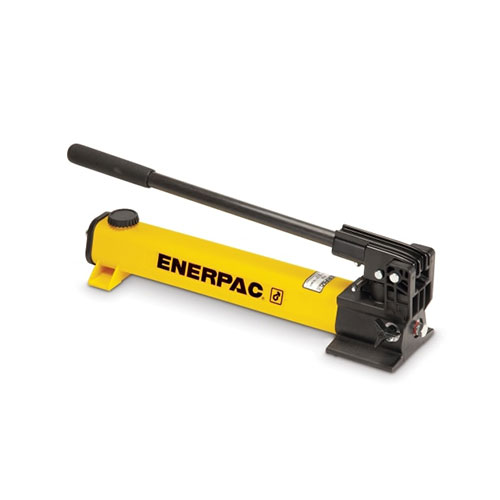

P3 Hand Pumps - Image 2

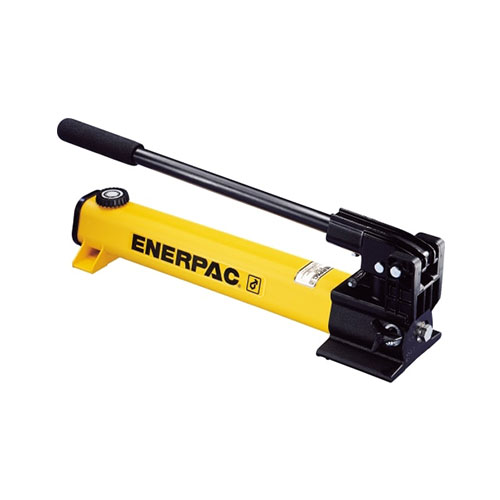

P3 Hand Pumps - Image 3

P3 Hand Pumps

Lightweight and compact design. Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance. Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps. Lower handle effort to minimize operator fatigue. Handle lock and lightweight construction for easy carrying. Large oil capacities to power a wide range of cylinders or tools. Non-conductive fiberglass handle for operator safety. Internal pressure relief valve for overload protection.

Specifications

  • Maximum Operating Pressure (bar): 700
  • Pressure Rating 2nd Stage (bar): 700
  • Cylinder Compatibility: Single-acting
  • Pump Type: Single Speed
  • Reservoir Capacity (cm3): 672 – 901
  • Usable Oil Capacity (cm3): 672 – 901
  • Maximum Flow at Rated Pressure: 2,46 – 2,47cm3/stroke
  • Oil Displacement Per Stroke (cm3): 2,46 – 2,47
  • Oil Displacement Per Stroke 1st Stage (cm3): –
  • Oil Displacement Per Stroke 2nd Stage (cm3): –
  • Maximum Handle Effort (kg): 38,6 – 39
  • Piston Stroke (mm): 25,4
  • Valve Operation: Manual
  • Power Source: Manual
  • Weight (kg): 4,1 – 6,2
SKU: woo-cap-1-1-1 Category:
Share This Post:

Description

Lightweight and compact design. Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance. Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps. Lower handle effort to minimize operator fatigue. Handle lock and lightweight construction for easy carrying. Large oil capacities to power a wide range of cylinders or tools. Non-conductive fiberglass handle for operator safety. Internal pressure relief valve for overload protection.

Specifications

  • Maximum Operating Pressure (bar): 700
  • Pressure Rating 2nd Stage (bar): 700
  • Cylinder Compatibility: Single-acting
  • Pump Type: Single Speed
  • Reservoir Capacity (cm3): 672 – 901
  • Usable Oil Capacity (cm3): 672 – 901
  • Maximum Flow at Rated Pressure: 2,46 – 2,47cm3/stroke
  • Oil Displacement Per Stroke (cm3): 2,46 – 2,47
  • Oil Displacement Per Stroke 1st Stage (cm3): –
  • Oil Displacement Per Stroke 2nd Stage (cm3): –
  • Maximum Handle Effort (kg): 38,6 – 39
  • Piston Stroke (mm): 25,4
  • Valve Operation: Manual
  • Power Source: Manual
  • Weight (kg): 4,1 – 6,2

Additional information

color

Yellow
