Enerpac

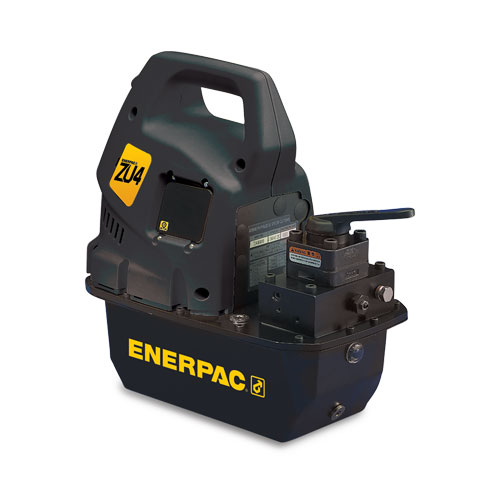

ZU4 Series

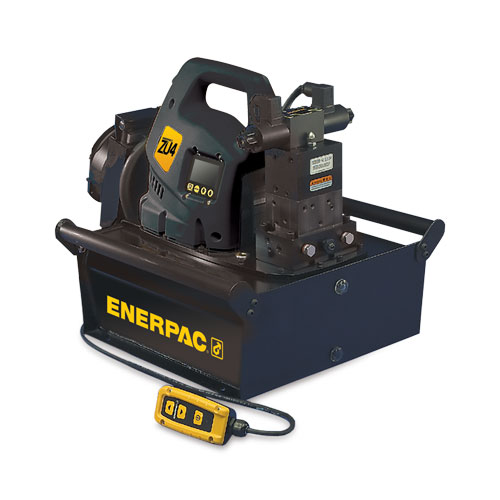

ZU4 Series - Image 2

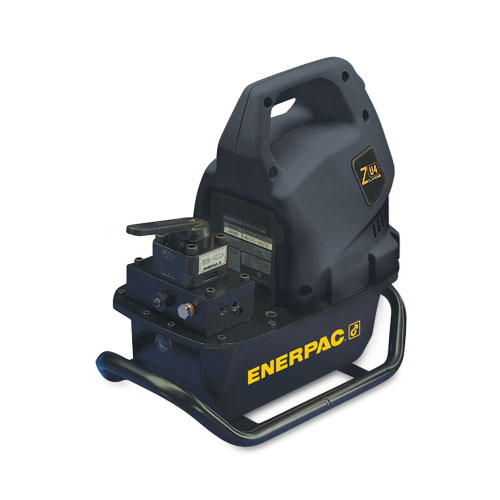

ZU4 Series - Image 3

ZU4 Series

Enerpac ZU4 Hydraulic Pumps are built to power small to large torque wrenches. Choosing the right ZU4 torque wrench pump for your application is easy.

Specifications

  • Cylinder Compatability: Single-acting and Double Acting
  • Reservoir Capacity (cm3): 2000 – 8000
  • Usable Oil Capacity (litres): 8,0 – 20,0
  • Output Flow Rate at 7 bar (l/min): 11,5
  • Output Flow Rate at 50 bar (l/min): 8,8
  • Output Flow Rate at 350 bar (l/min): 1,2
  • Output Flow Rate at 700 bar (l/min): 1,0
  • Motor Size (hp): 1.7
  • Motor Hertz: 50/60 Hz
  • Motor Phases: 1 Ph
  • Motor Voltage: 115 V
  • Duty Cycle: Intermittent
  • Valve Function: Advance / Hold / Retract
  • Valve Operation: Manual and Solenoid
  • Valve Type: 3-way and 4-way, 3-position, Tandem Center
  • Valve Model Range: VM33, VE43
  • Power Source: Electric
  • Pump Control: Manual and Pendant
  • Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz
  • Sound Level (dBa): 85 – 90
  • Relief Valve Adjustment Range (bar): 140 – 700
  • Weight (kg): 32 – 56
SKU: woo-cap-1-1 Category:
Share This Post:

Description

Enerpac ZU4 Hydraulic Pumps are built to power small to large torque wrenches. Choosing the right ZU4 torque wrench pump for your application is easy.

Specifications

  • Cylinder Compatability: Single-acting and Double Acting
  • Reservoir Capacity (cm3): 2000 – 8000
  • Usable Oil Capacity (litres): 8,0 – 20,0
  • Output Flow Rate at 7 bar (l/min): 11,5
  • Output Flow Rate at 50 bar (l/min): 8,8
  • Output Flow Rate at 350 bar (l/min): 1,2
  • Output Flow Rate at 700 bar (l/min): 1,0
  • Motor Size (hp): 1.7
  • Motor Hertz: 50/60 Hz
  • Motor Phases: 1 Ph
  • Motor Voltage: 115 V
  • Duty Cycle: Intermittent
  • Valve Function: Advance / Hold / Retract
  • Valve Operation: Manual and Solenoid
  • Valve Type: 3-way and 4-way, 3-position, Tandem Center
  • Valve Model Range: VM33, VE43
  • Power Source: Electric
  • Pump Control: Manual and Pendant
  • Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz
  • Sound Level (dBa): 85 – 90
  • Relief Valve Adjustment Range (bar): 140 – 700
  • Weight (kg): 32 – 56
