Gedore

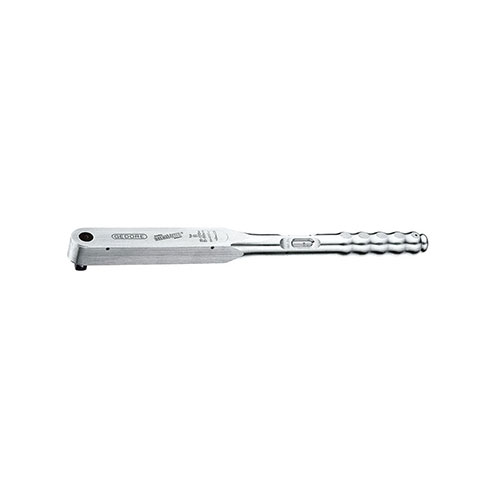

8561 Dremometer

8561 Dremometer

About Torque Wrench Drenometer

Information

  • Adjustable torque wrench with a 1/2”single square drive for controlled clockwise tightening.
  • 1/2” square drive with ball-locking mechanism as per DIN 3120.
  • Full-metal construction from high strength aluminium alloy.

Specifications

  • Double scale Nm and lbf.ft with scale graduation of 1Nm and 10lbf.in.
  • Nm: 20-120
  • Scale: 5Nm
  • Weight: 1.50 Kg
  • Total length: 462 mm
SKU: woo-album-2-1-2-1-2 Category:
Share This Post:

Description

About Torque Wrench Drenometer

Information

  • Adjustable torque wrench with a 1/2”single square drive for controlled clockwise tightening.
  • 1/2” square drive with ball-locking mechanism as per DIN 3120.
  • Full-metal construction from high strength aluminium alloy.

Specifications

  • Double scale Nm and lbf.ft with scale graduation of 1Nm and 10lbf.in.
  • Nm: 20-120
  • Scale: 5Nm
  • Weight: 1.50 Kg
  • Total length: 462 mm
