DVI-20L/Z & DVI-28L/Z
Information
- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections.
- With a single-stage planet gear.
- High-performance aluminium housing.
- Multiplication at the ratio of 1:4, 1:5.5.
- Guaranteed accuracy: Better than +/- 3% tolerance.
- For operation in combination with a torque wrench.
- 2 models for maximum load in the range between maximum 2000Nm and 2800Nm.

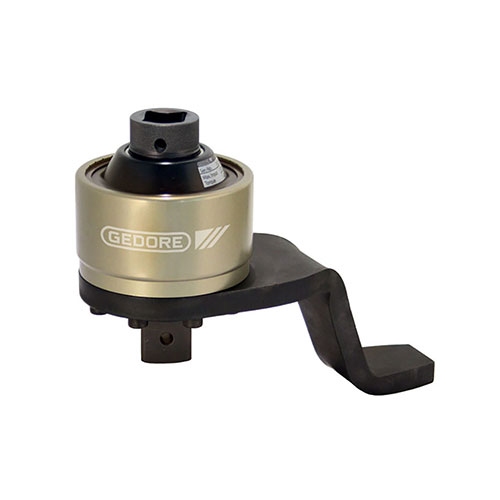

- Z model: with Z-form, offset reaction arm of Chrome Vanadium steel.

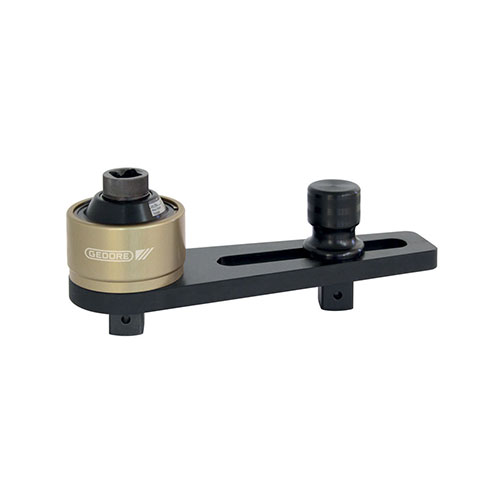

- L model: with L-form straight reaction arm – with adjustable reaction square – of lightweight metal.
- Output square with drill hole for impact sockets with safety pin and ring
Specifications
- Output Max: 2000 – 2800 NM
- Input Max: 550 – 580 NM
- Reaction Arm: offset / straight
- Weight: 2,9 – 4,1Kg
- Multiplication at the ratio: 1:4 – 1:5,5
