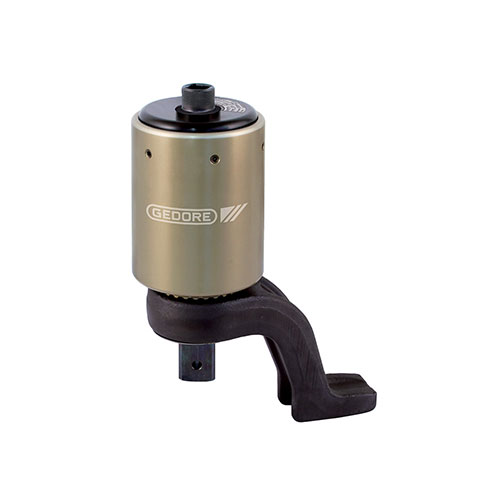

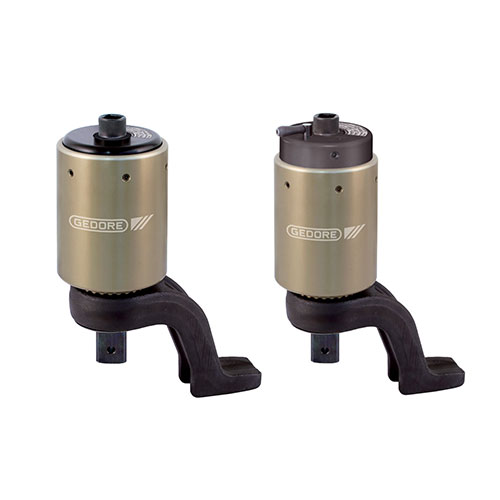

DVV-40Z & DVV-40ZRS
Information
- Mechanical hand torque multiplier for controlled screw tightening. and unloosening screw connections.
- With a two-stage planet gear.
- High-performance aluminium housing.
- Torque multiplication ratio: 1:16.

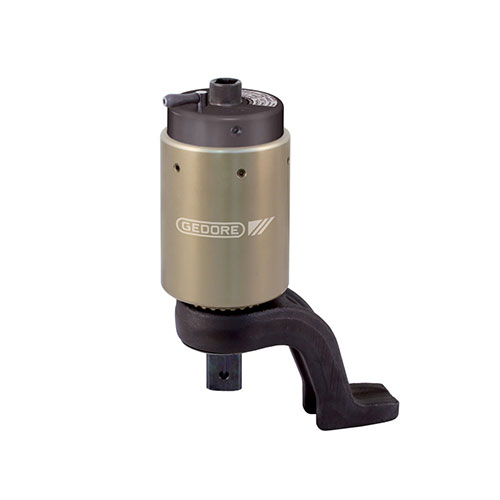

- DVV-40ZRS model with anti-wind-up ratchet (RS).
- With non-destructive Slipper overload safety mechanism for gear protection – clockwise and anti-clockwise.
- Z-form, offset reaction arm depending on model made of Chrome Vanadium steel.
- Can be optionally retrofitted with L-form straight reaction arm – with adjustable reaction arm – of lightweight metal.
- Guaranteed accuracy: Better than +/- 3% tolerance.
- For operation in combination with a torque wrench.
- 2 models for a maximum load at around a maximum 4000Nm.
- Output square drive with a drill hole for sockets or impact sockets with safety pin and ring.
Specifications
- Output Max: 6000 – 13000 NM
- Input Max: 380 – 420 NM
- Weight: 10,5 – 20,9 Kg
- Multiplication at the ratio: 1:16
