Norbar

Industrial Torque Wrenches
Industrial Torque Wrenches - Image 2
Industrial Torque Wrenches - Image 3
Industrial Torque Wrenches - Image 4
Industrial Torque Wrenches - Image 5
Industrial Torque Wrenches - Image 6
Industrial Torque Wrenches - Image 7
Industrial Torque Wrenches - Image 8
Industrial Torque Wrenches - Image 9

Industrial Torque Wrenches

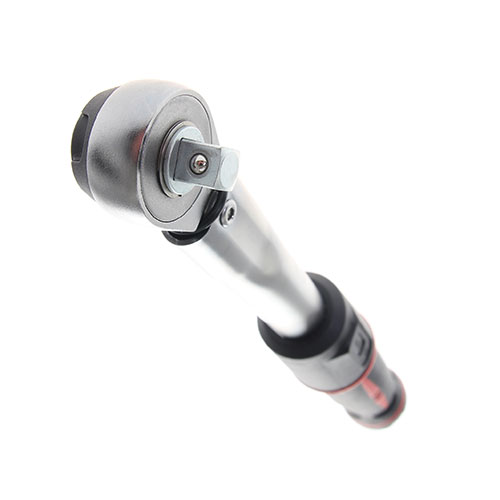

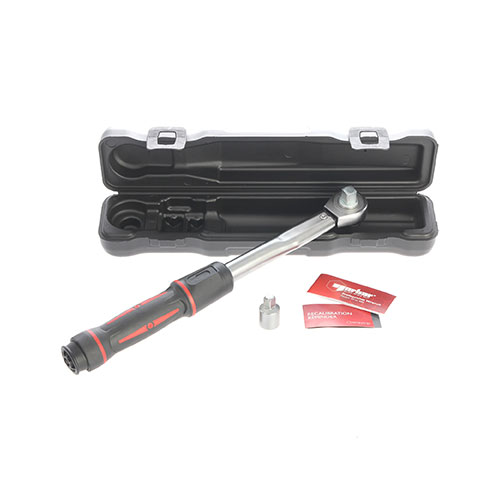

The NorTorque® utilises Norbar’s proven mechanism and internal components and incorporates them into a purposeful and attractive torque wrench. In developing NorTorque®, Norbar’s objective was to deliver outstanding quality and performance in a value for money package. Fine engineering ensures that the wrench adjustment is both fast and fingertip light meaning that you can do your job more efficiently. Supplied with a Declaration of Conformance which meets the requirements ISO 6789-1:2017. Accurate to ±3% of reading with models available to cover 12 N·m to 300 N·m.

Specifications

  • Length: 328mm, 375mm, 459mm, 588mm, 679mm
  • Weight: 0.7kg, 0,8kg, 1kg, 1,4kg, 1,55kg
  • Ratchet Teeth: 72, 60
  • Square Drive: 3/8”, 1/2”,
  • Ratchet Diameter: 36mm, 42mm, 45mm, 52mm,
  • Supplied with a ½” sq. dr. adaptor
  • Scale Increments (N·m): 0.5 – 2
  • Scale Increments (lbf·ft): 1 – 10
SKU: woo-album-2-1-2-1-7-3-2 Category:
Share This Post:

Description

The NorTorque® utilises Norbar’s proven mechanism and internal components and incorporates them into a purposeful and attractive torque wrench. In developing NorTorque®, Norbar’s objective was to deliver outstanding quality and performance in a value for money package. Fine engineering ensures that the wrench adjustment is both fast and fingertip light meaning that you can do your job more efficiently. Supplied with a Declaration of Conformance which meets the requirements ISO 6789-1:2017. Accurate to ±3% of reading with models available to cover 12 N·m to 300 N·m.

Specifications

  • Length: 328mm, 375mm, 459mm, 588mm, 679mm
  • Weight: 0.7kg, 0,8kg, 1kg, 1,4kg, 1,55kg
  • Ratchet Teeth: 72, 60
  • Square Drive: 3/8”, 1/2”,
  • Ratchet Diameter: 36mm, 42mm, 45mm, 52mm,

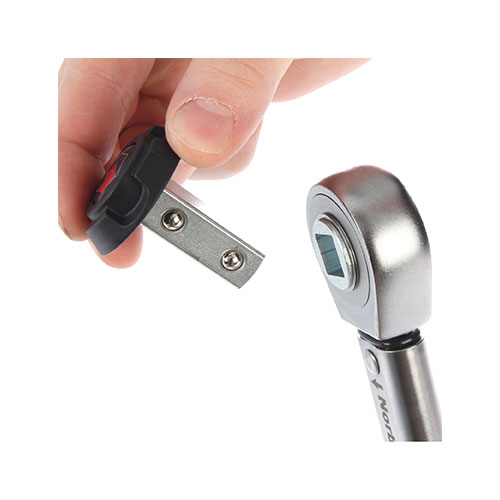

  • Supplied with a ½” sq. dr. adaptor
  • Scale Increments (N·m): 0.5 – 2
  • Scale Increments (lbf·ft): 1 – 10
