Norbar

Pneumatic Torque Tools

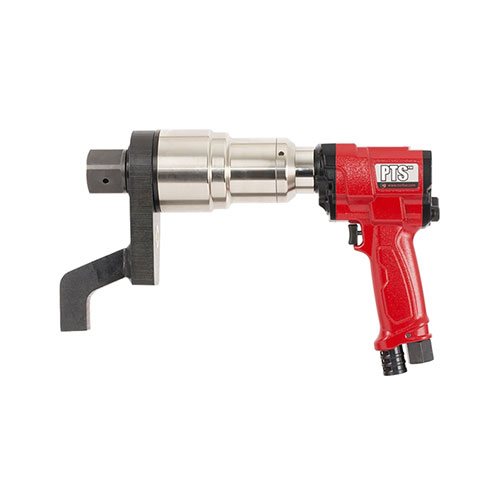

Pneumatic Torque Tools - Image 2

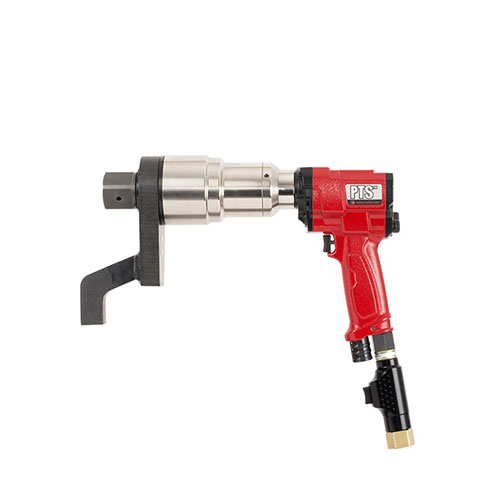

Pneumatic Torque Tools

The PneuTorque consists of a robust air motor driving a Norbar multiplier with 3 or more stages of epicyclic gearing. Torque control is achieved through adjustment of the air pressure. An air pressure versus torque graph and a calibration certificate is supplied with each tool and allows specific torque values to be set. For more critical applications, PneuTorques can be fitted with a torque transducer and the precise torque output displayed. The tool can then be shut off at the desired torque either manually or automatically using suitable control circuitry.

Specifications

  • Square Size: 1″
  • Max Air Pressure: 6.5 bar
  • Tool Weight: 8.95 kg
  • Output Speed: 2.6 – 100 rpm
  • Reaction Plate Weight: 2.5 kg
  • Free Speed: 5.3 rpm
SKU: woo-album-2-1-2-1-7-3-1 Category:
Share This Post:

Description

The PneuTorque consists of a robust air motor driving a Norbar multiplier with 3 or more stages of epicyclic gearing. Torque control is achieved through adjustment of the air pressure. An air pressure versus torque graph and a calibration certificate is supplied with each tool and allows specific torque values to be set. For more critical applications, PneuTorques can be fitted with a torque transducer and the precise torque output displayed. The tool can then be shut off at the desired torque either manually or automatically using suitable control circuitry.

Specifications

  • Square Size: 1″
  • Max Air Pressure: 6.5 bar
  • Tool Weight: 8.95 kg
  • Output Speed: 2.6 – 100 rpm
  • Reaction Plate Weight: 2.5 kg
  • Free Speed: 5.3 rpm
